Description

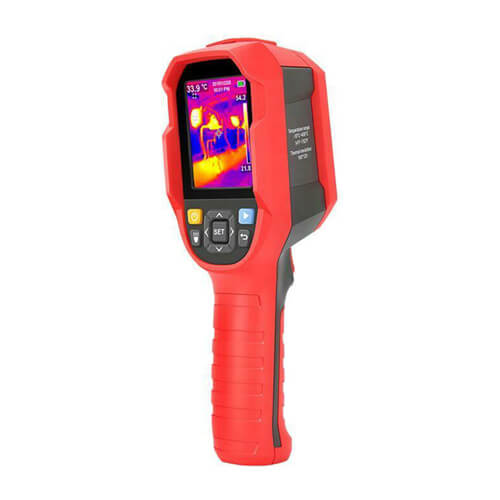

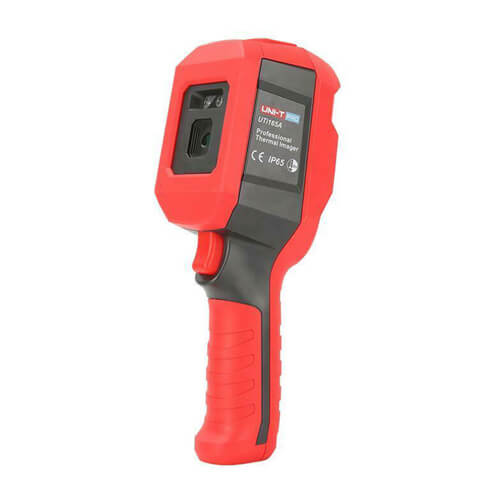

Uni-T UTi 165A Tri-Proof Handheld High-Precision Infrared Thermal Imager
Advantages of thermal imager detection:
1. Intuitive, efficient, and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgment
3. Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points
4. PC software for data analysis and report output
Features:
- 2.8″ TFT screen
- Infrared resolution: 160 x 120
- Temperature measurement range: -10℃~400℃
- Photograph function with SD card storage
- PC analysis software
- Buzzer/flashlight alarm
- Real-time image transmission
- Auto capture of Hi/Low temperature
- Flashlight
- 1/4″ tripod mounting hole
- IP65/2m drop proof
| Specifications | |
| Model | UTi165A |
| IR resolution | 160×120 pixels |
| Field of view (FOV) | 56°×42° |
| Thermal sensitivity (NETD) | ≤150mk (0.15℃) |
| Temperature range | -10~400℃ |
| Spatial resolution (IFOV) | 11mrad |
| Frame rate | ＜9Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater |
| Focus | Focus free |
| Display modes | Thermal |
| Display | 2.8” LCD |
| Auto capture of Hi/Low temperature | √ |
| Measurement modes | |
| WIFI | |
| PC analysis software | √ |
| Drop-proof | 2m |
| IP rating | IP65 |
| General Characteristics | |
| Power | Li-ion battery (3.7V 5000mAh) |
| Product color | Red and grey |
| Product net weight | 455g |
| Product size | 236mm x 75.5 mm x 86mm |
| Standard accessories | micro USB cable, micro SD card, Type-C USB cable |
| Standard individual packing | Blister, gift box, English manual |
